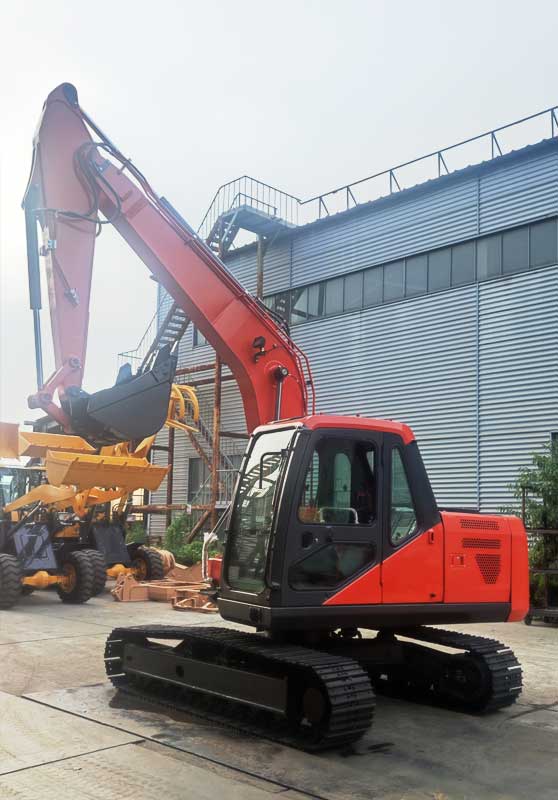

Hydraulic crawler 12ton digger excavator

1, Adopting high-performance supercharged engine, with abundant power and low fuel consumption.

2, Double oil cylinder design of movable arm increases the lifting force of digging. It can be installed with various attachments such as crushing hammer, pine machine, wood grabber, auger and so on.

3, The width of the chassis can be controlled 2450-2550, to meet the customer's narrow area operation.

4, Can be equipped with bulldozer to increase the stability of mountainous areas.

Contact Now E-Mail Telephone WhatsApp

Product Details

Aiweiya 4-cylinder Diesel Engine 12 ton Crawler Excavator

1、Imported add-ons to beautify the universal overall performance of the machine.
2、signle-forging forming cylinder, no longer convenient to break, built-in NOK seal.
3、Use thicker wonderful steel, follow plastic molding process, stop rust and anti-corrosion.
4、The use of internationally famend company reducers affords easy operation and excessive reliability.
5、The 360-degree physique rotates freely, and the clever physique helps outside work.

Optional crushing pipe, can be equipped with a variety of crushing hammer, soil breaker, wood grabber, auger and other different accessories, a multi-purpose machine; Using the deflection arm, you can easily dig the foot of the wall from the work.

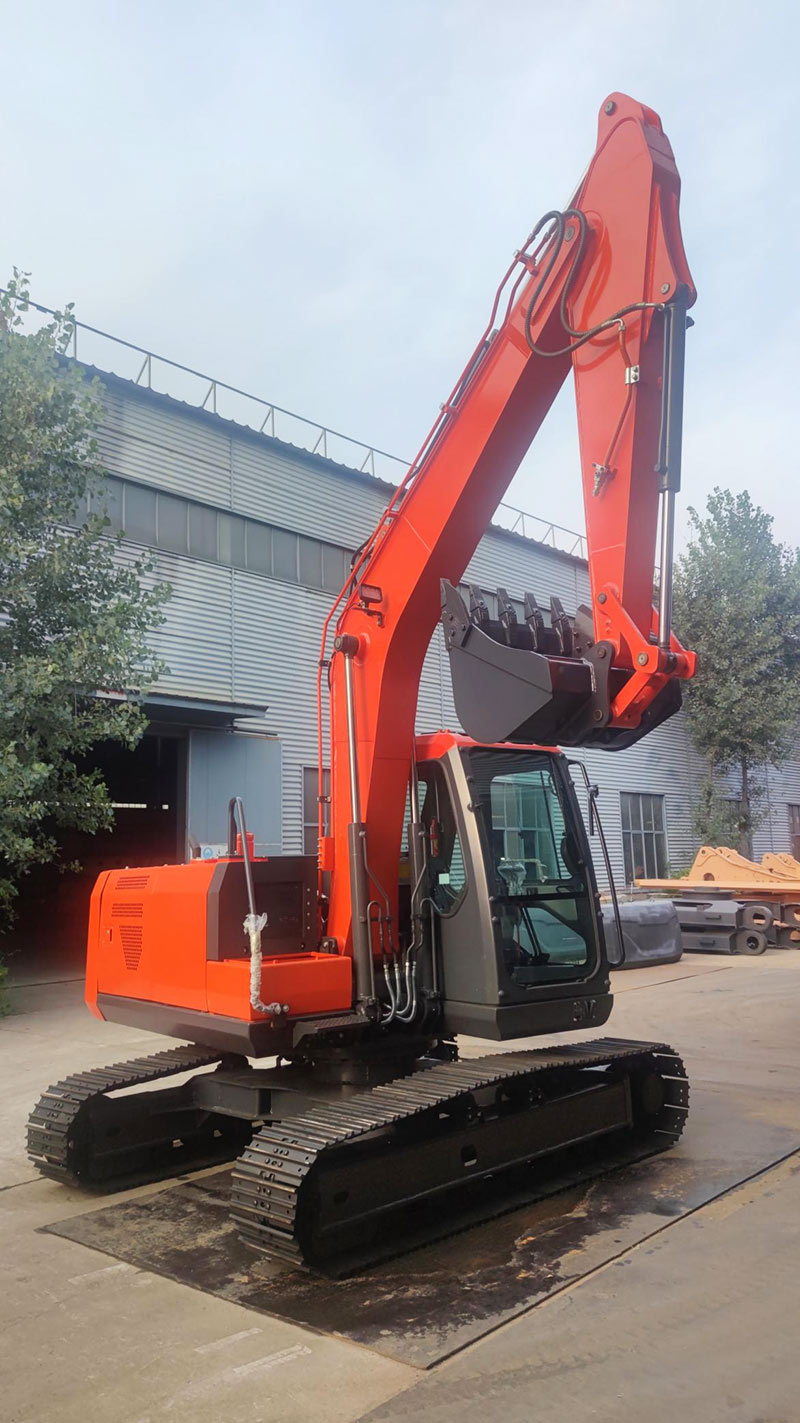

12 Ton Excavator

Parameters of 12ton crawler excavator:

Specification	Working Weight (kg)	12000
	Bucket capacity (m³)	0.5
	Boom length (mm)	4200
	Stick length (mm)	2100
	Bucket	backhoe
	Power	Traditional power
	Bucket	Backhoe
Performance	Rotary Speed (rpm)	12
Performance	Walking speed (km/h)	3.4-4.9
Power system	Engine model	4C6
	Rated Power (kw/rpm)	81KW
	Cooling method	Water cooling
Hydraulic system	Main pump type	Plunger pump ADP112
	Rotary hydraulic motor type	EATON Brand
	Walking motor	VTM10
	Control valve	HF of korea
Machine Size	Total transport length (mm)	7200
	Total transport width(mm)	2440/2490
	Total transport height(mm)	2700
	Cab full height (mm)	2700
	Boarding width (mm)	2270
	Total track length (mm)	3380
	Track shoe width (mm)	450/500
	Minimum ground clearance (mm )	350
	Rear end turning radius(mm )	1800
Scope of work	Maximum digging radius (mm)	7317
	Maximum digging depth (mm)	4500
	Maximum digging height (mm)	7000
	Maximum unloading height (mm)	5470
Note: Doosan imported hydraulic parts

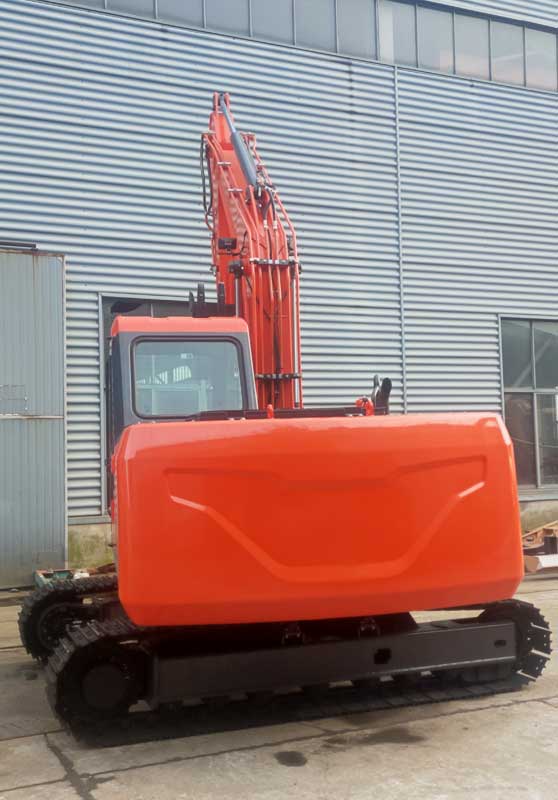

12 Ton Excavator

For an excavator of its size, the AWY120 has an incredible complete overall performance tool that is superior to similar products. This excavator is very compact and nimble and performs well on narrow roads, rough terrain and areas with low earthmoving volumes. It can be widely used in various working environments such as indoor demolition, toilet renovation, engineering forced entry, wasteland treatment, etc. The core components of this excavator have outstanding overall performance, creating greater cost performance for customers. It is suitable for various operations such as hills, small earthworks, municipal engineering, broken concrete, dredged rivers, etc., showing good applicability and application flexibility.
