Enginering 16ton crawler hydraulic excavator

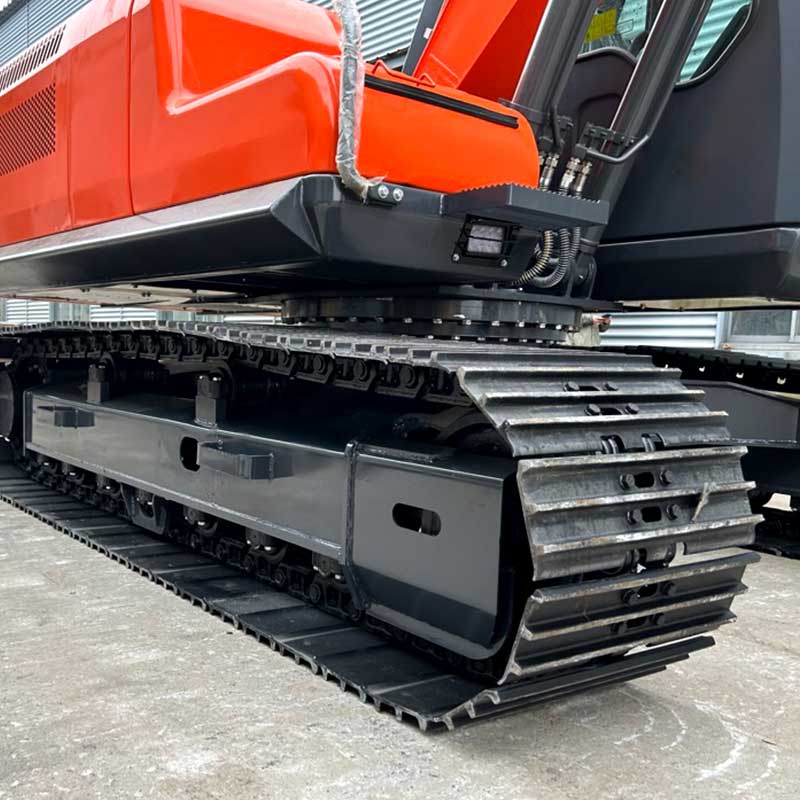

1, The chassis guide is reinforced to prevent the guide frame from deformation leading to derailment.

2, Improve the form of upper supporting wheel and increase to 4. Double the service life.

3, The hydraulic system adopts Japan KYB series, solving the short board of 15 tons uncoordinated action.

4, Optimize the structure of the vehicle, the main frame lengthened 430mm and the counterweight increased 800KG.

5, The heat dissipation system increases 25% margin, effectively preventing high temperature problems.

Contact Now E-Mail Telephone WhatsApp

Product Details

Aiweiya Diesel Engine 16 ton Crawler Excavator

1, Imported accessories, beautify the general overall performance of the machine.

2, Rivet forging cylinder, breaking is no longer convenient, built-in NOK sealing ring.

3, The use of thickened wonderful steel, with plastic molding process, rust and corrosion prevention.

4, The use of internationally renowned enterprises reducer, easy to operate, high reliability.

5, 360 degrees fuselage rotation freely, smart fuselage helps to go out.

6, The heat dissipation system increases the margin by 25%, effectively preventing high temperature problems.

16ton excavator

● Optional crushing pipe, can be equipped with a variety of breaking hammer, ground breaker, wood grab, auger and other different accessories, a multi-purpose machine; Using the deflection arm, the excavation can be easily deflected away from the foot of the working wall.

Parameters of 16ton excavator:

Specification	Working Weight (kg)	15000
	Bucket capacity (m³)	0.6-0.75
	Boom length (mm)	4600
	Stick length (mm)	2500
	Bucket	backhoe
	Power	Traditional power
	Bucket	Backhoe
Performance	Rotary Speed (rpm)	12
	Walking speed (km/h)	3.4-4.9
	Bucket digging force (kN)	Standard 77.4/Supercharged 81.3
	Digging force of stick (kN)	Standard 57.8/Supercharged 62
Power system	Engine model	Quanchai
	Rated Power (kw/rpm)	103KW
	Cooling method	Water cooling

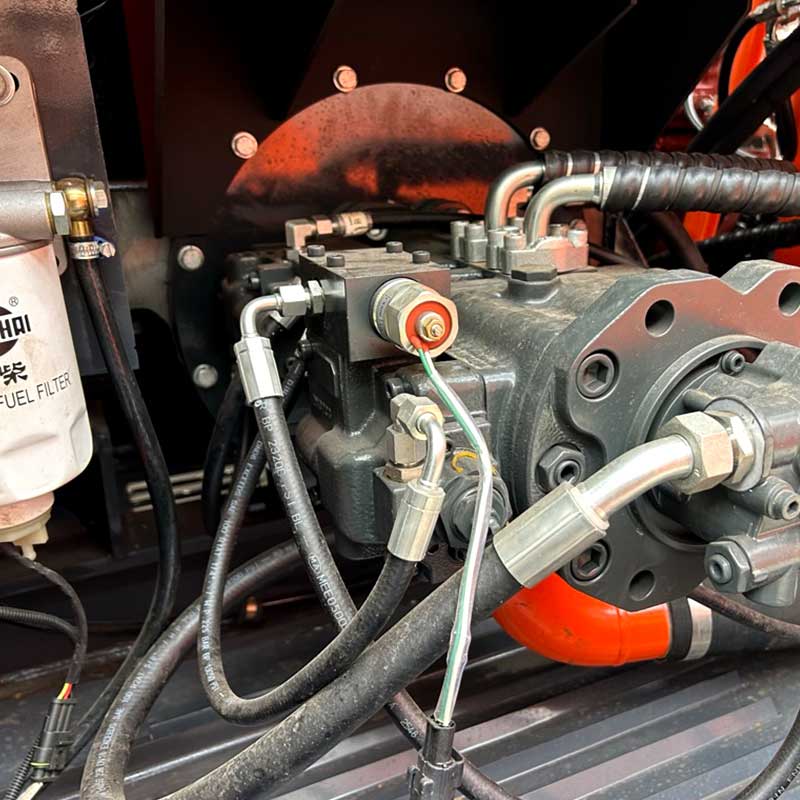

Hydraulic system	Main pump type	Plunger pump
	Main pump maximum flow	(l/min)2×116
	Rotary hydraulic motor type	26.5
	Working hydraulic oil circuit (Mpa)	Standard 32.5/Supercharged 34.3
	Walking hydraulic circuit (Mpa)	32.5
	Pilot pump flow (L/min)	27.7
Machine Size	Total transport length (mm)	7700
	Total transport width(mm)	2600
	Total transport height(mm)	2830
	Cab full height (mm)	2830
	Boarding width (mm)	2490
	Counterweight ground clearance (mm)	920
	Track ground length (mm)	2780
	Total track length (mm)	3495
	Track shoe width (mm)	500
	Overall track width (mm)	2550
	Track gauge (mm)	2000
	Minimum ground clearance (mm )	410
	Rear end turning radius(mm )	2200
Scope of work	Maximum digging radius (mm)	8260
	Maximum excavation radius of parking surface (mm)	8110
	Maximum digging depth (mm)	5630
	Maximum digging height (mm)	8620
	Maximum unloading height (mm)	6200
	Maximum vertical digging depth (mm)	5070
	Maximum effective digging depth (mm)	5380
Note: Doosan imported hydraulic parts

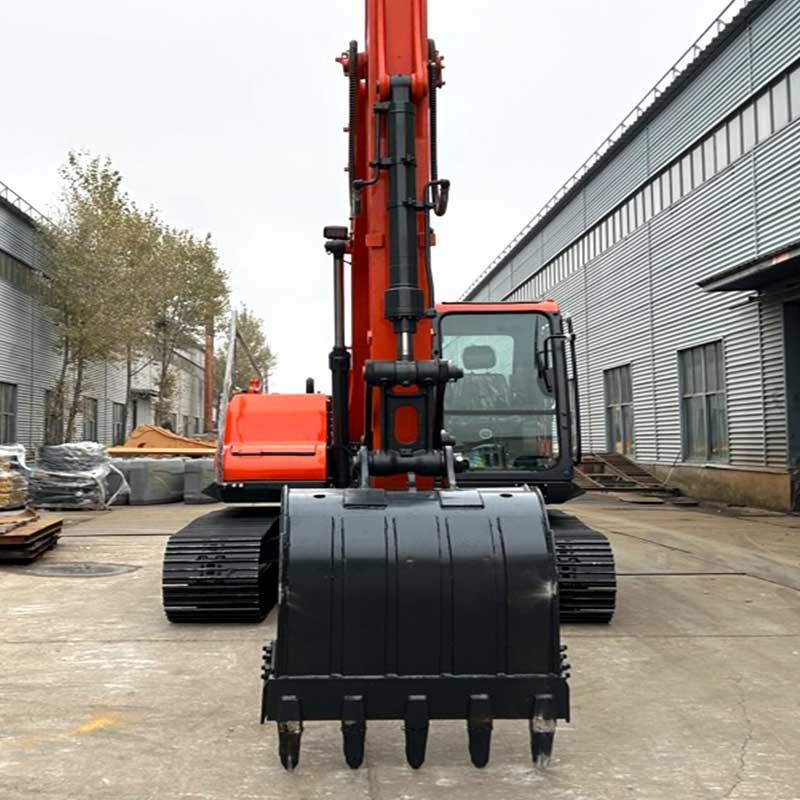

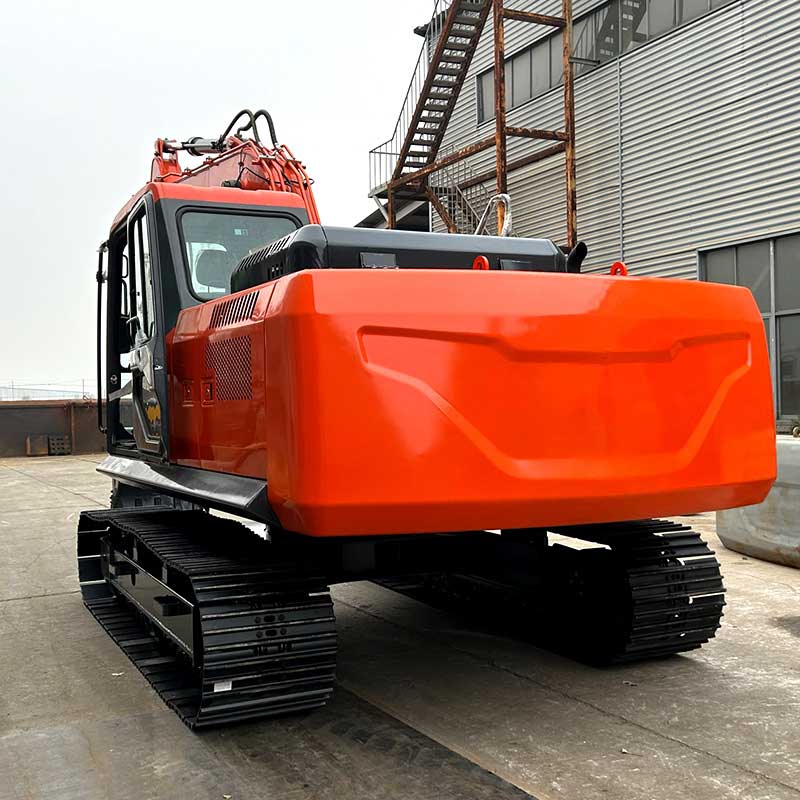

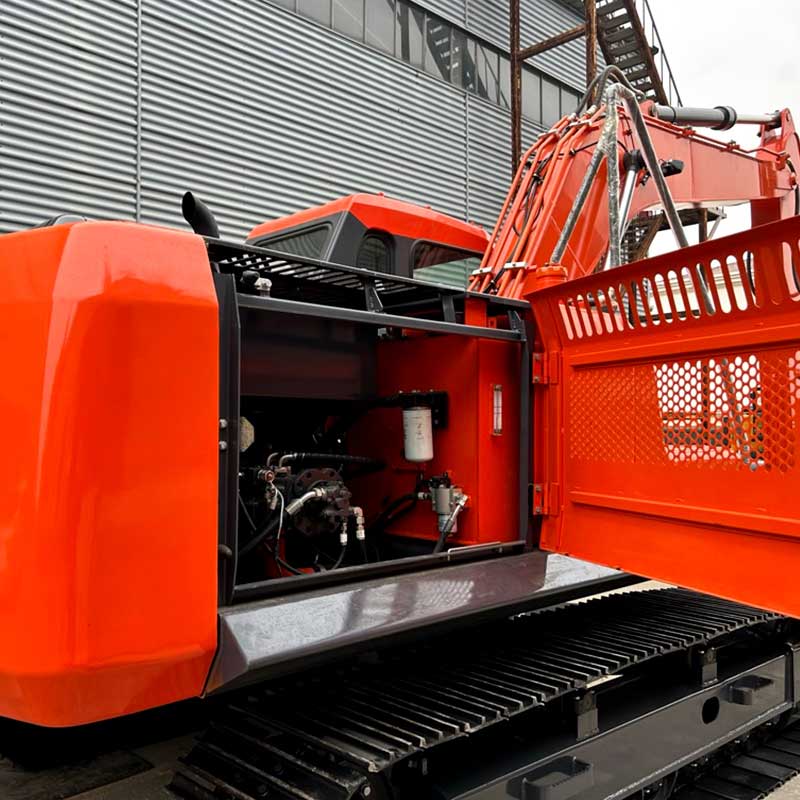

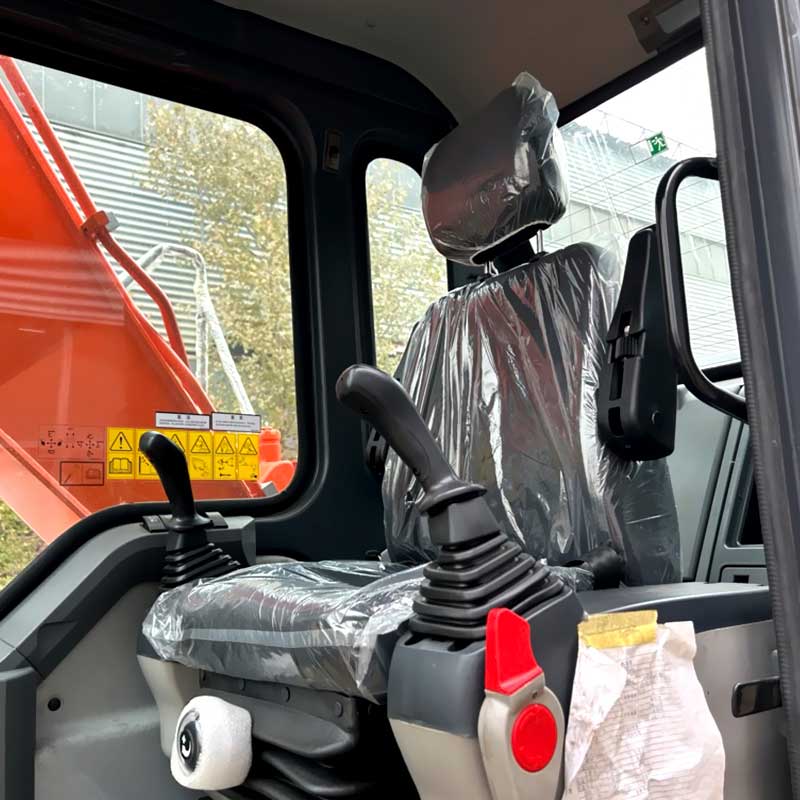

Details of 16ton excavator

16ton excavator

16 Ton Excavator

APPLICATION of 16ton EXCAVATOR：

It is used in a number working environments such as street repair, land leveling, floor filing, pipeline laying,mining, reservoir construction, river and ditch dredaing projects, and building projects, lt has the functionsof excavation,crushing,trench clearing, drilling, and bulldozing.
